Noise Cut Transformer-BOXIN
| Table | PRI.V. | SEC.V. | CAPACITY | DWG,NO |
|---|---|---|---|---|
| NESH※※※※TVNN A | 100-110-115 | 100-110-115 | 500VA ~ 5kVA | H4-26958e-1 |
| NESH※※※※TVNN B | 190-200-210 | 100-110-115 | 500VA ~ 5kVA | H4-26959e-1 |
| NESH※※※※TVNN D | 190-200-210 | 200-210-220 | 1kVA ~ 4kVA | H4-26961e-1 |
| NESH※※※※TVNN E | 380-400-415 | 200-210-220 | 1kVA ~ 4kVA | H4-26962e-1 |

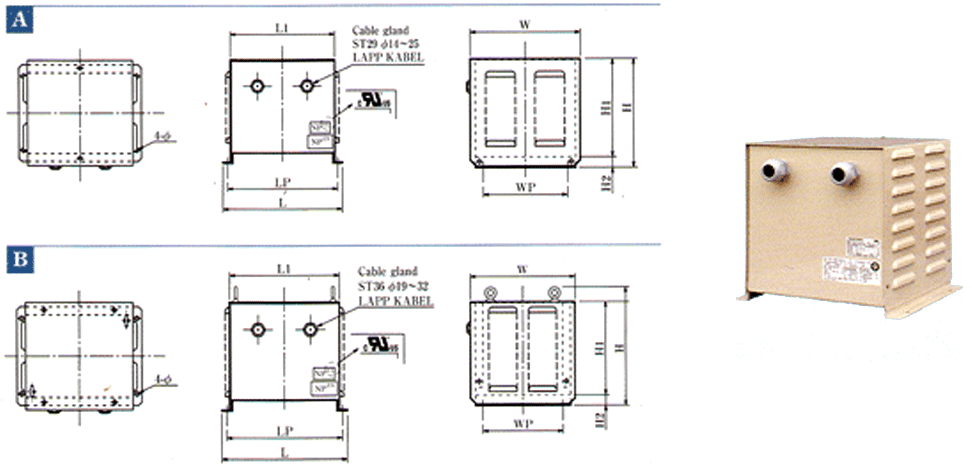

| CAPACITY | L | L1 | LP | W | WP | H | H1 | H2 | Φ | kg | REMARK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500VA | 355 | 300 | 335 | 310 | 200 | 318 | 300 | 18 | 10 | 23 | A |
| 1kVA | 29 | ||||||||||
| 1.5kVA | 34 | ||||||||||
| 2kVA | 39 | ||||||||||
| 3kVA | 405 | 350 | 385 | 360 | 250 | 453 | 400 | 18 | 10 | 53.5 | B |
| 4kVA | 63.5 | ||||||||||
| 5kVA | 71.5 |
